Designation |
Defect parameters |
Roughness of operating surface, µm |
Overall dimensions, mm/in. |
Material |
Field of use |
Note |
||
|
Length, mm/in. |
Width, mm/in. |
Depth, mm/in. |
||||||
|
RS2353.12-5H/0-FLN/0.5/AL |
Full length |
0.1 / .004 |
0.5 / .02 |
0.63 |
150 x 50 x 10 / 6 x 2 x .4 |
Aluminium alloy |
Aircraft, power, transportation, engineering industries |

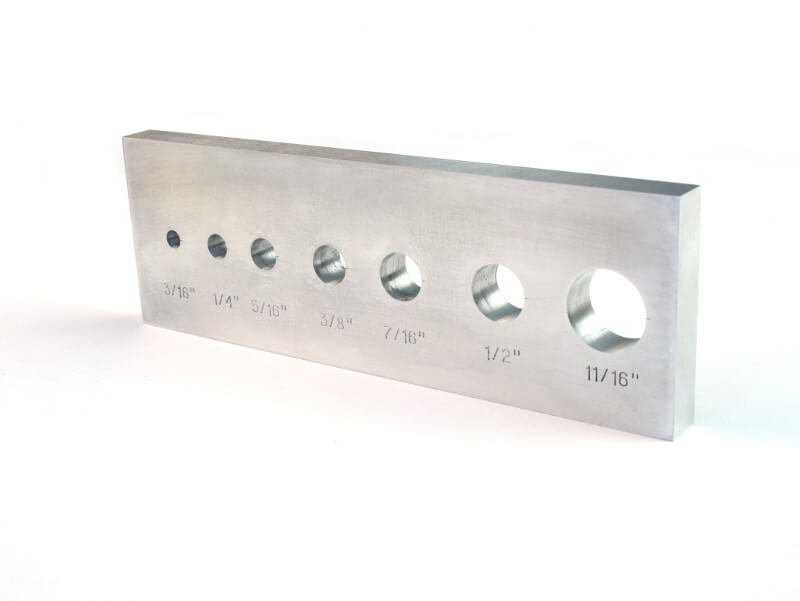

Rectangular calibration block with several holes |
|
RS2353.12-1H/0-CN/0.76/AL |
0.76 / .03 |
0.1 / .004 |
0.76 / .03 |
0.63 |
ø 24 × 10 / Ø1 x .4 |
Aluminium alloy |
Cylindrical calibration block with one hole |
|
RS — reference standard;
2353 — manufacturer company code;
.12 — calibration block for holes testing;
...H — number of holes;
/0 — number of flawless holes;
СN/FLN — defect type (CN – corner notch, FLN – full length notch);
0.5/0.76 — defect dimensions;
AL/FE/SST/TI — material.
