Straight Beam Single Element Probe with ceramic face

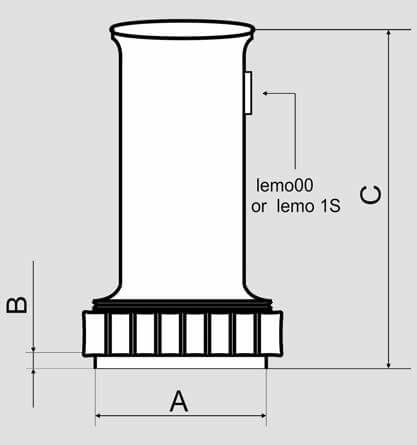

Case dimensions:
| Element dia., | A, | B, | C, | ||||
| mm | in | mm | in | mm | in | mm | in |
| 10 | .375 | 13 | .375 | 2.2 | .08 | 43.5 | 1.7 |
| 12 | .500 | 15 | .570 | 2.2 | .08 | 43.5 | 1.7 |
| 20 | .750 | 23 | .900 | 2.3 | .12 | 50.6 | 2.0 |
| 24 | 1.00 | 28 | 1.1 | 3.2 | .12 | 56.0 | 2.2 |
General specifications:
| Catalog number | Frequency, MHz | Element dia., | Type of case | Connector type | Connector position | |
| mm | in | |||||
| TS2-10C* | 2.0 | 10 | .375 | Plated brass | Lemo00 | Side |
| TS4-10C | 4.0 | 10 | .375 | Plated brass | Lemo00 | Side |
| TS5-10C | 5.0 | 10 | .375 | Plated brass | Lemo00 | Side |
| TS2-12C | 2.0 | 12 | .500 | Plated brass | Lemo00 | Side |
| TS4-12C | 4.0 | 12 | .500 | Plated brass | Lemo00 | Side |
| TS5-12C | 5.0 | 12 | .500 | Plated brass | Lemo00 | Side |
| TS2-20C | 2.0 | 20 | .750 | Plated brass | Lemo00 | Side |
| TS1-24C | 1.0 | 24 | 1.00 | Plated brass | Lemo1S | Side |
| TS2-24C | 2.0 | 24 | 1.00 | Plated brass | Lemo1S | Side |
| TS4-24C | 4.0 | 24 | 1.00 | Plated brass | Lemo1S | Side |
* material of the face transducer: C • Ceramic
