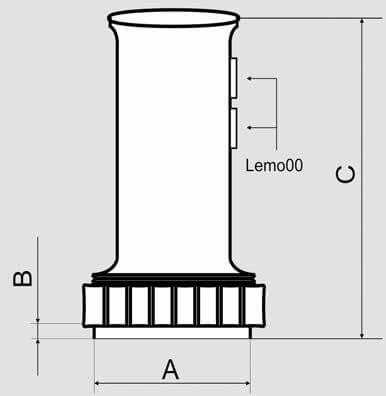

Transducer dimensions:
| Element dia., | A, | B, | C, | ||||
| mm | in | mm | in | mm | in | mm | in |
| ∅10 | ∅.375 | 13.2 | .52 | 9.0 | .35 | 50.4 | 1.98 |
| ∅12 | ∅.500 | 15.4 | .60 | 9.0 | .35 | 50.4 | 1.98 |
| ∅20 | ∅.750 | 24.0 | .94 | 9.0 | .35 | 59.0 | 2.32 |
| 7x18 | .275x.750 | 29.0 | 1.14 | 10.0 | .40 | 66.0 | 2.60 |
| 6x20 | .250x.750 | 29.0 | 1.14 | 10.0 | .40 | 66.0 | 2.60 |
General specifications:
| Catalog number | Frequency, MHz | Element size, | Type of case | Connector type | Connector position | |
| mm | in | |||||
| TSD2-10 | 2.0 | ∅11/2 | ∅.375 | Plated brass | Lemo00 | Side |
| TSD4-10 | 4.0 | 3.5x10 | .375 | Plated brass | Lemo00 | Side |
| TSD5-10 | 5.0 | ∅9/2 | ∅.375 | Plated brass | Lemo00 | Side |
| TSD2-12 | 2.0 | ∅12 | ∅.500 | Plated brass | Lemo00 | Side |
| TSD4-12 | 4.0 | ∅12 | ∅.500 | Plated brass | Lemo00 | Side |
| TSD5-12 | 5.0 | ∅12 | ∅.500 | Plated brass | Lemo00 | Side |
| TSD2-20 | 2.0 | ∅20 | ∅.750 | Plated brass | Lemo00 | Side |
| TSD4-20 | 4.0 | ∅20 | ∅.750 | Plated brass | Lemo00 | Side |
| TSD5-20 | 5.0 | ∅20 | ∅.750 | Plated brass | Lemo00 | Side |
| TSD2-24 | 2.0 | 7x18 | .275x.750 | Plated brass | Lemo00 | Side |
| TSD4-24 | 4.0 | 6x20 | .250x.750 | Plated brass | Lemo00 | Side |
| TSD5-24 | 5.0 | 6x20 | .250x.750 | Plated brass | Lemo00 | Side |
